Hell to open it!

Gullible-Bug-2951 | 2026-01-18 11:45 | 23 views

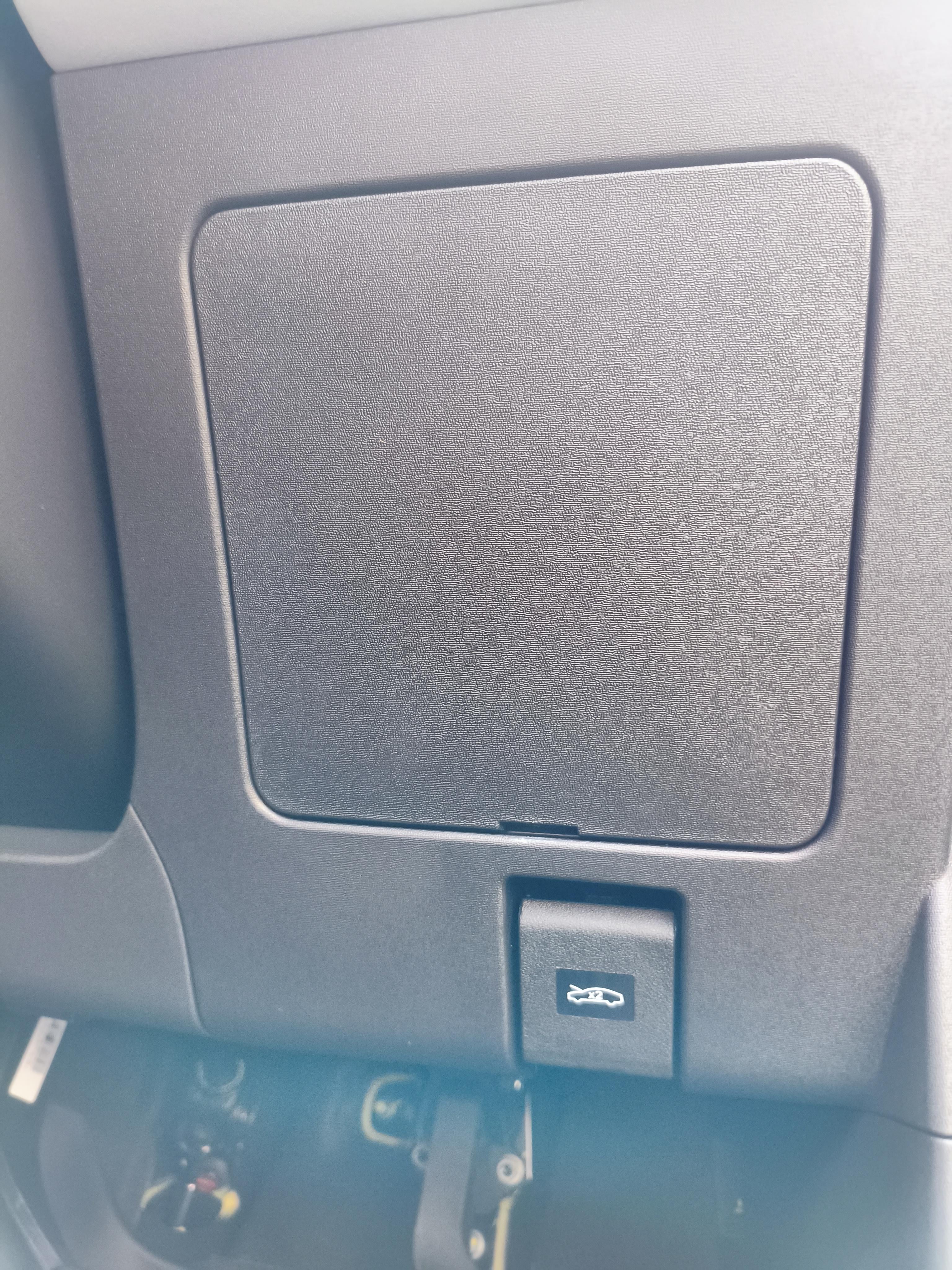

I have dolphin surf 2025 probably. I bought it early this year. It is Europe UK version( right hand drive). I love the car really. And I want to install front and rear dash cams that I bought over TOPBYD site. I hot hardware installation kit cause I don't want to cam be connected to ligter socket. Problem is, I can't even open this interior fusebox cover. I have 2 trims plastic ones for this, and I trying to open it, bending it a lot, even sadly I left traces on car plastic 😢. I am bending a lot trying to pull it out but surely it holds very tight. Does anyone know how to open it? EDIT 1: Cover is opened by pulling more upwards than towards boot. As per advise of the redit user. EDIT 2: If you need it for ACC, there is none :') all fuses are permanently ON (VCC) and almost all fuses here are Micro2 (if someone wants to know). Since I freaking don't want to pull cable all the way to the front compartment fuse box (engine bay) from inside, solution will be still using VCC and ground there on that dashboard fuse box, but will add a cable from behind cigarette lighter to the this dashboard fuse box and ofc add a fuse. I hope this will help someone :)

Comments (16)

FrenchFatCat 2026-01-18 11:55

I gave up when I wanted to have a look. Its REALLY on there.

ag2f 2026-01-18 14:13

What does the instructions manual say? Maybe try with the key inside the key fob.

Gullible-Bug-2951 2026-01-18 14:16

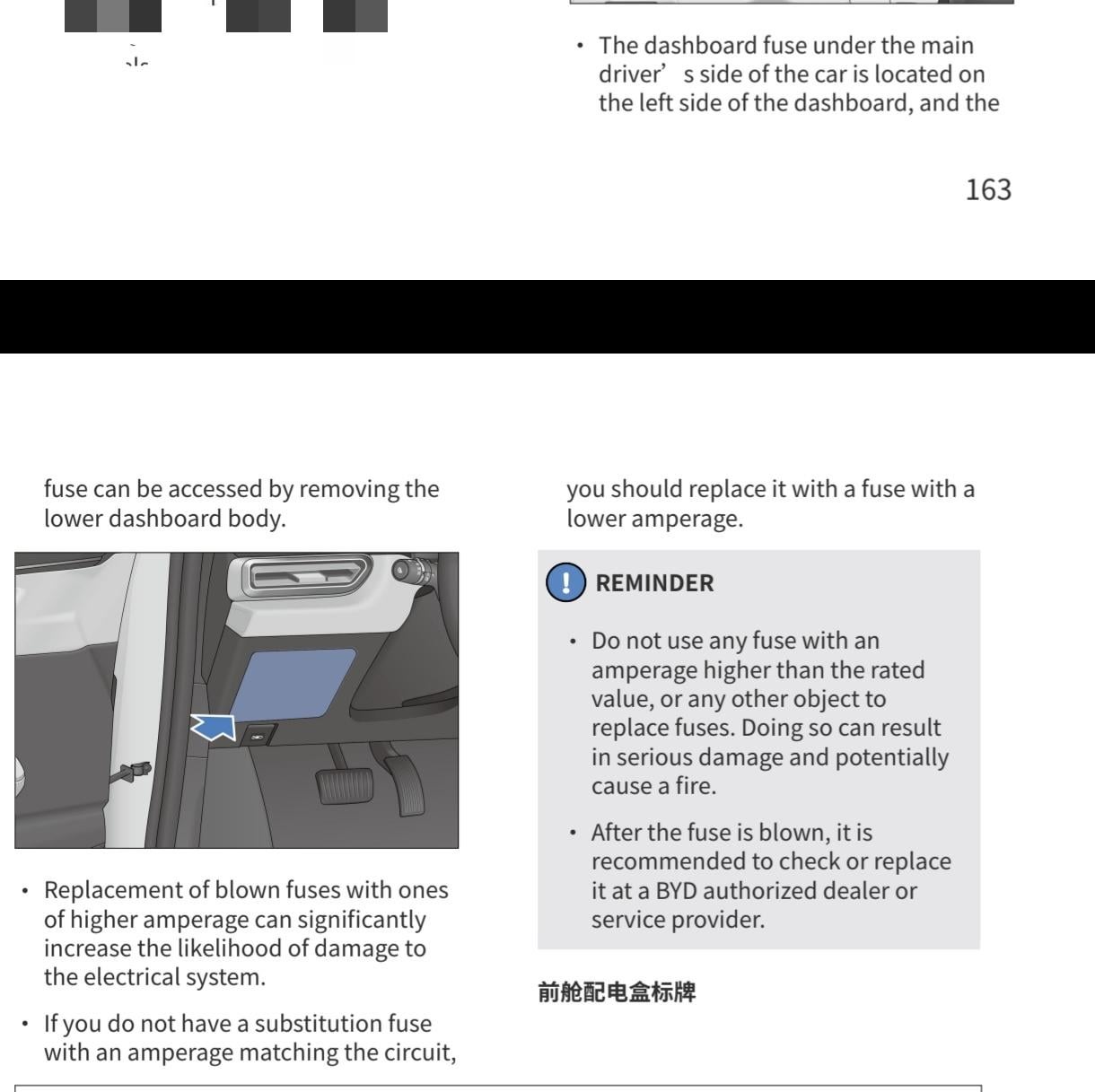

https://preview.redd.it/ot3h9pgc94eg1.jpeg?width=1220&format=pjpg&auto=webp&s=17d003327f2b3a41e98d45e6bb7249fa216a3240 Instructions don't say much 😞

ag2f 2026-01-18 14:18

That's unfortunate

flashdognz 2026-01-18 14:37

Did you notice that narrow slot at the bottom edge of the fuse door? Perhaps try inserting something like a screw driver?

Gullible-Bug-2951 2026-01-18 16:09

Yes. I was putting there that plastic trim lever. But not screwdriver because it is harder than plastic and will bend it and leave mark.

Gullible-Bug-2951 2026-01-18 19:07

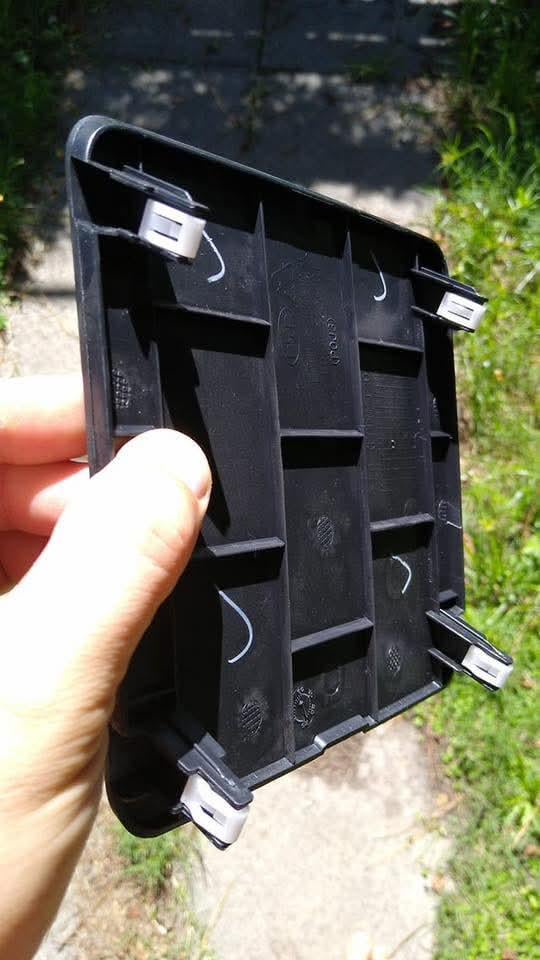

I actually got a image from some lad on fb. Now I know with what I'm dealing with. https://preview.redd.it/axxffjrbp5eg1.jpeg?width=540&format=pjpg&auto=webp&s=347a126932c14eda4d854259e597ae0ee491e60e

g8_massimo 2026-01-18 22:14

In that case try not to pull the door but rather pull up since the knobs are not horizontal but diagonal.

General-Statement-64 2026-01-20 19:21

I was that lad 🤣

Gullible-Bug-2951 2026-01-20 19:23

Thanks bro ❤️

paulalonzo 2026-01-21 03:46

Use the lighter port if not ask a professional to hardwire the dashcam everybody needs help we just need to accept it.

CarlSPC1 2026-01-21 08:33

Check in your region with your dealer first if byd allows user to hot wire any 3rd party accessories like dashcams, amplifiers etc, as it will void the warranty. Do check before preceding

FFFortissimo 2026-01-21 18:56

You write you have a right hand drive car. Some cars keep their fuse boxes on the left side even though the rest of the car is on the right side. The panel is just fixed and you need to access the fusebox from another opening. Can this be the case?

Gullible-Bug-2951 2026-01-21 18:57

I removed glovebox on another side to check is it there. And it isn't.

FFFortissimo 2026-01-21 19:06

shame :(

Gullible-Bug-2951 2026-02-08 13:43

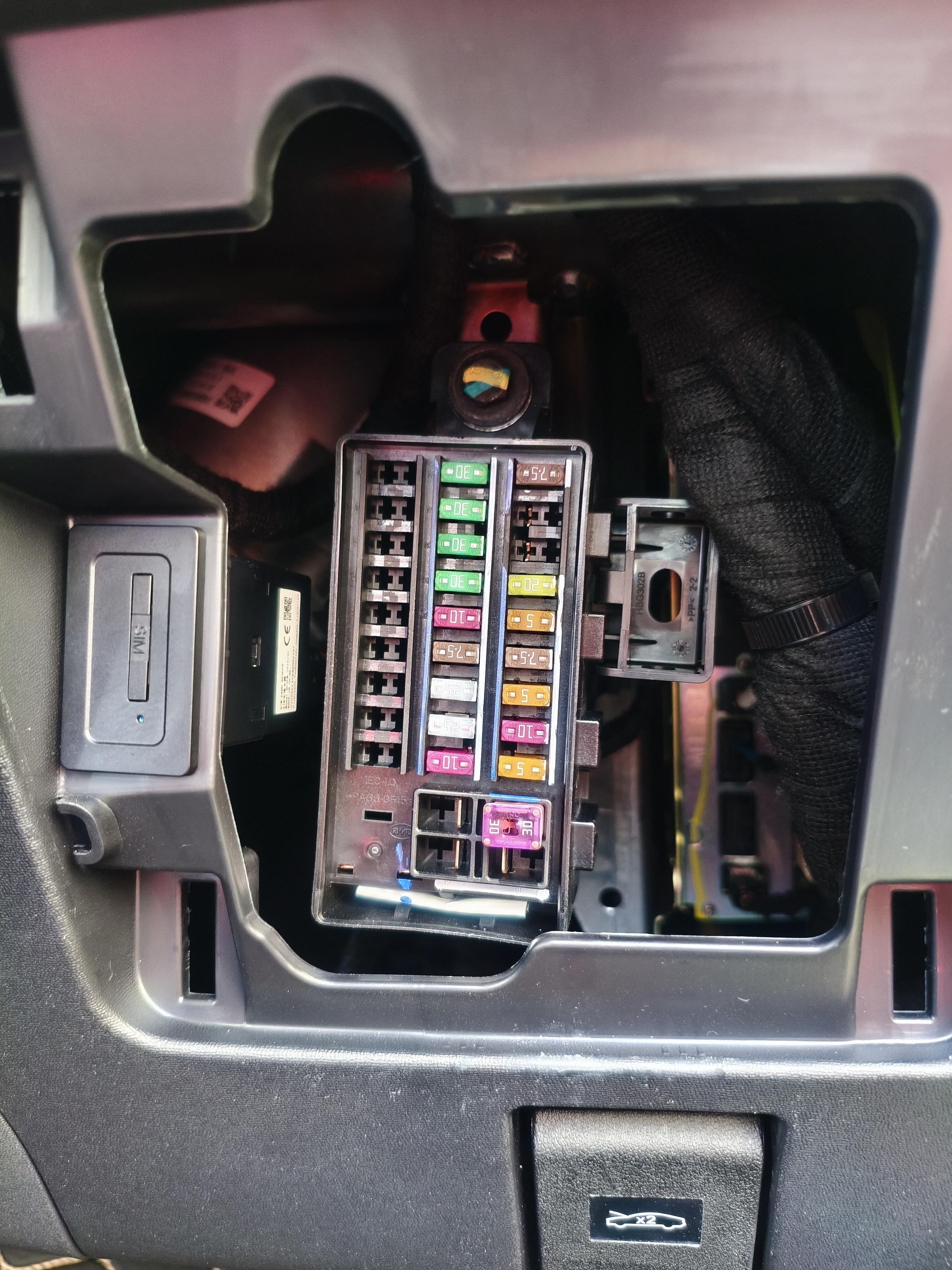

Can't edit original post so will update here: I did it, I took it out. Hardly but I did it. As soon as I lift it with one trim, I hook it with other trim in the bottom right corner and pull it strongly in the more upward direction. I did few strong pulls and it went out. First corner is hard, then others was easy. https://preview.redd.it/h08aikhjy9ig1.jpeg?width=3072&format=pjpg&auto=webp&s=4347e309fdaa8fcc89bb4789808e86eacd0a6aa1 Then I found out that there are Micro2 type fuses 😅 meaning I need to order another fuse tap, I ordered bundle of different ones, neither one in bundle is micro2 🤣
